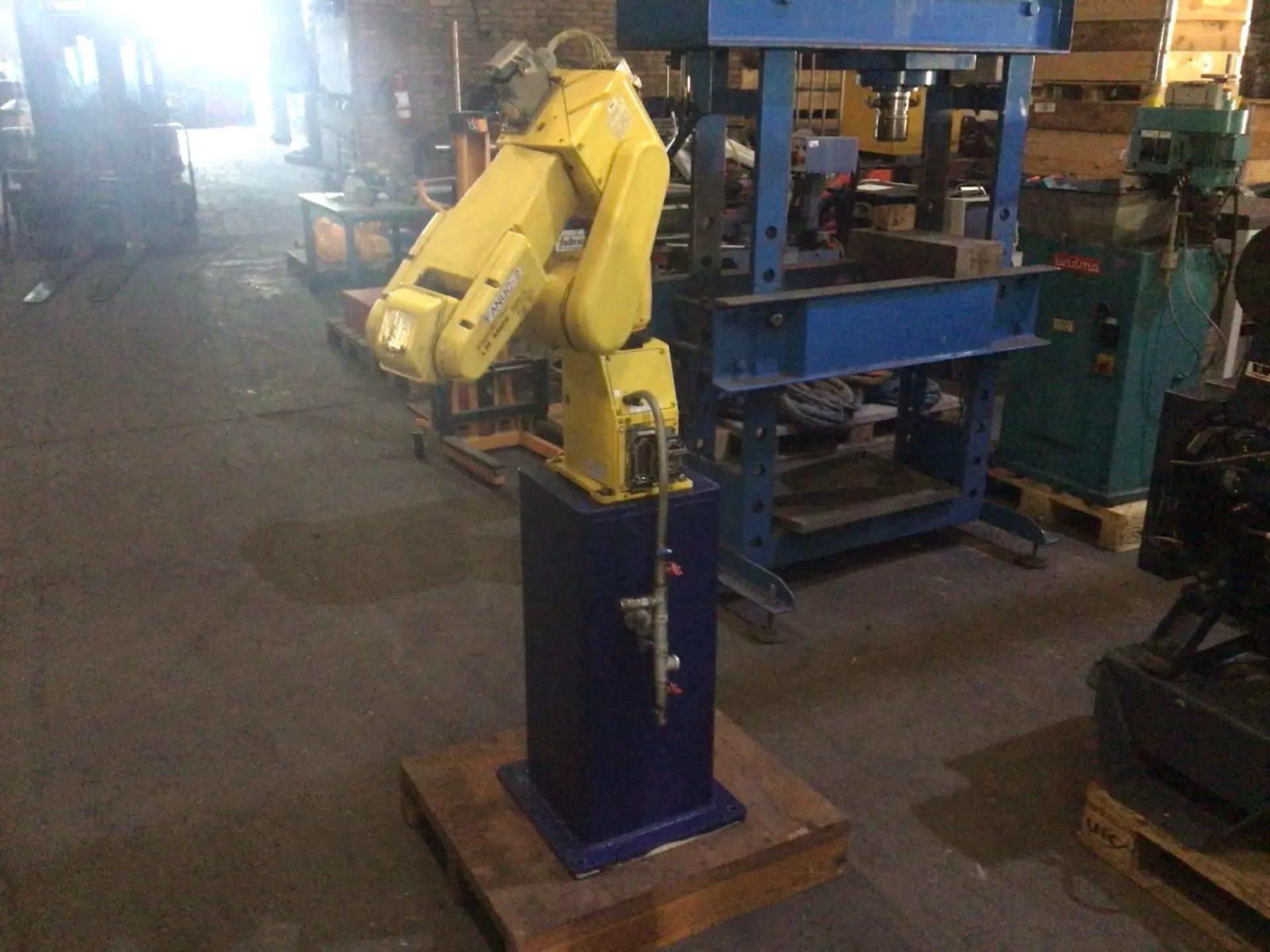

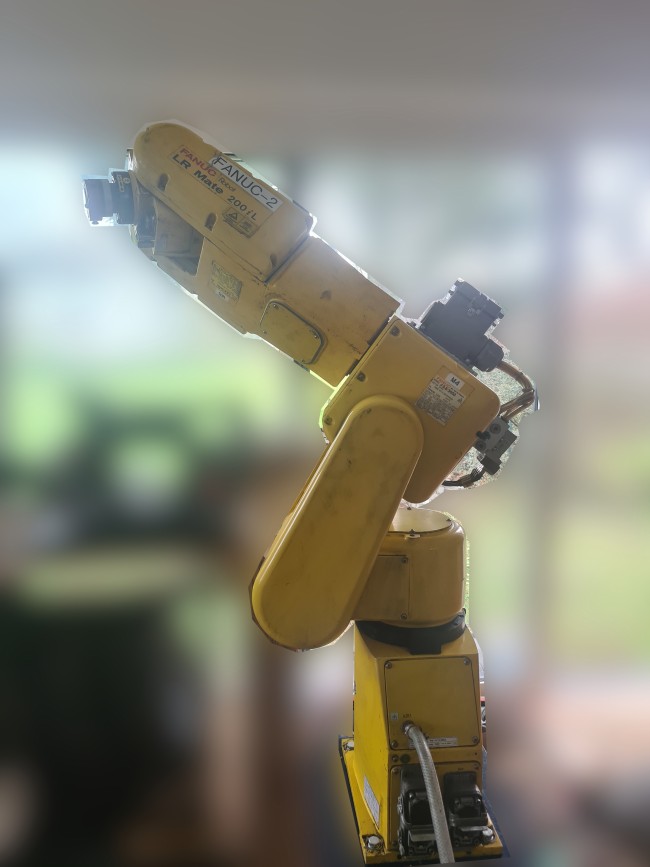

This Lr Mate 200 il Fanuc arm was up for auction for a very low cost; no controller was included, but opening it has already been interesting, I look forward to reverse engineering it a bit to see if I can run it! Kinematics will be a challenge. Seller told me he would “Reach out if I find the controller” as if it was something that could be forgotten about under a rug.

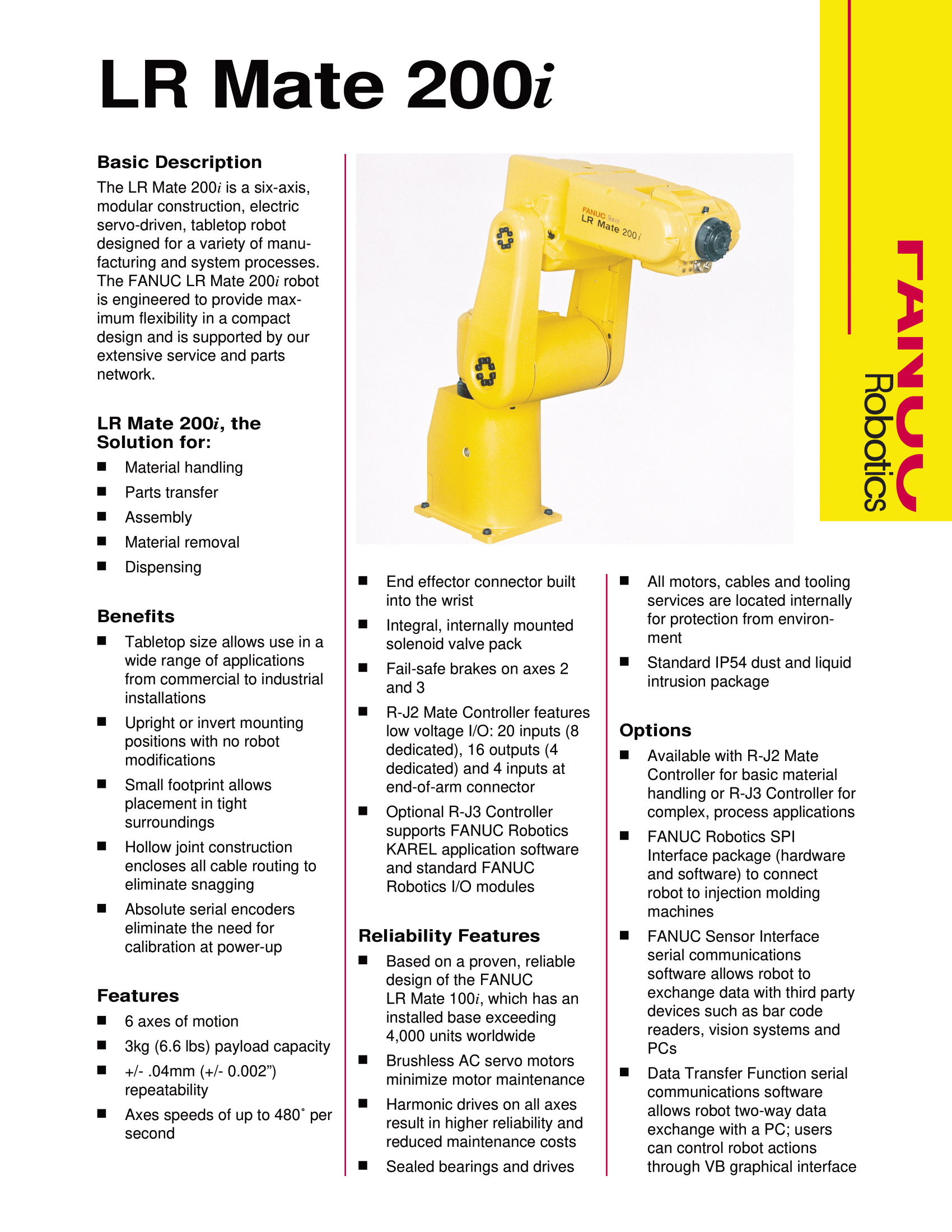

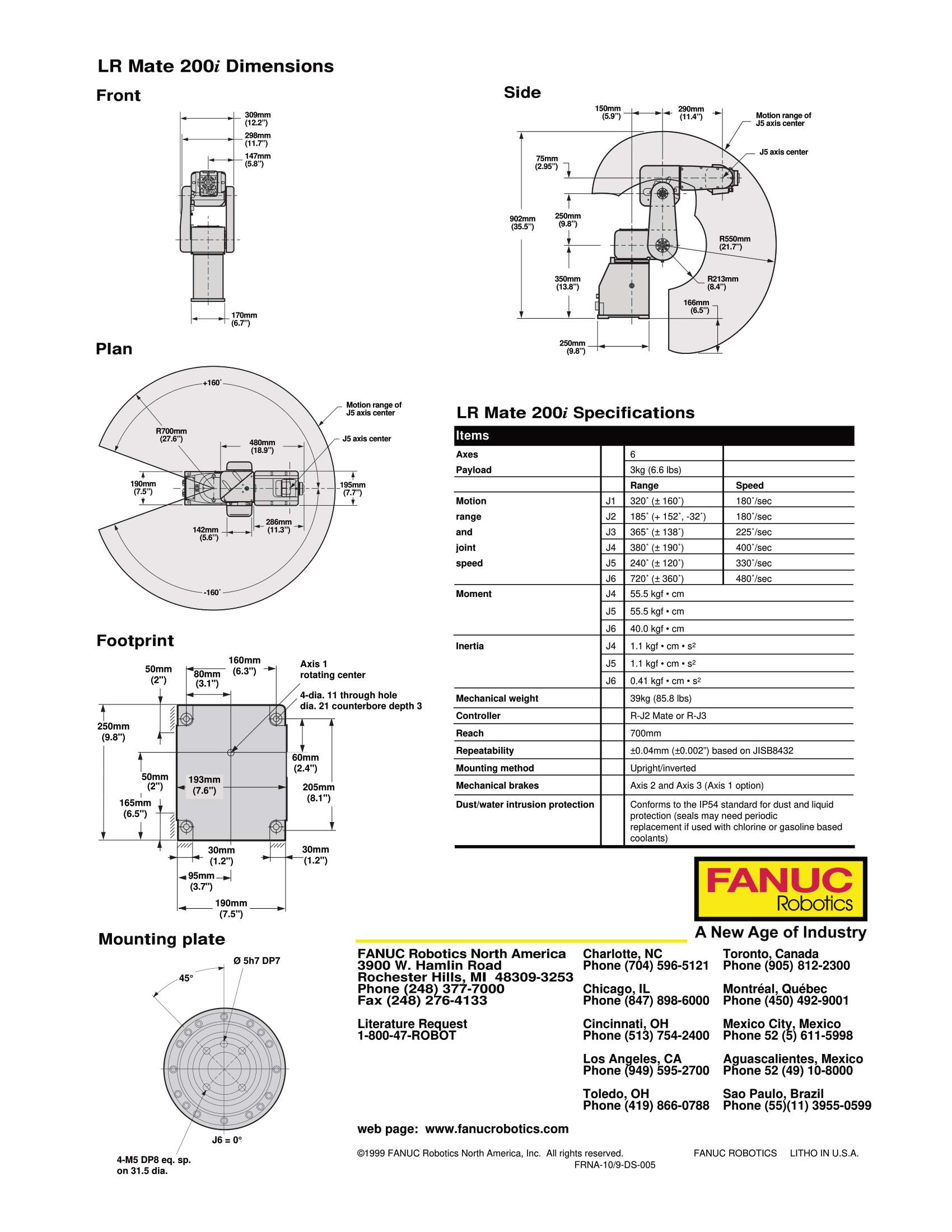

Datasheet:

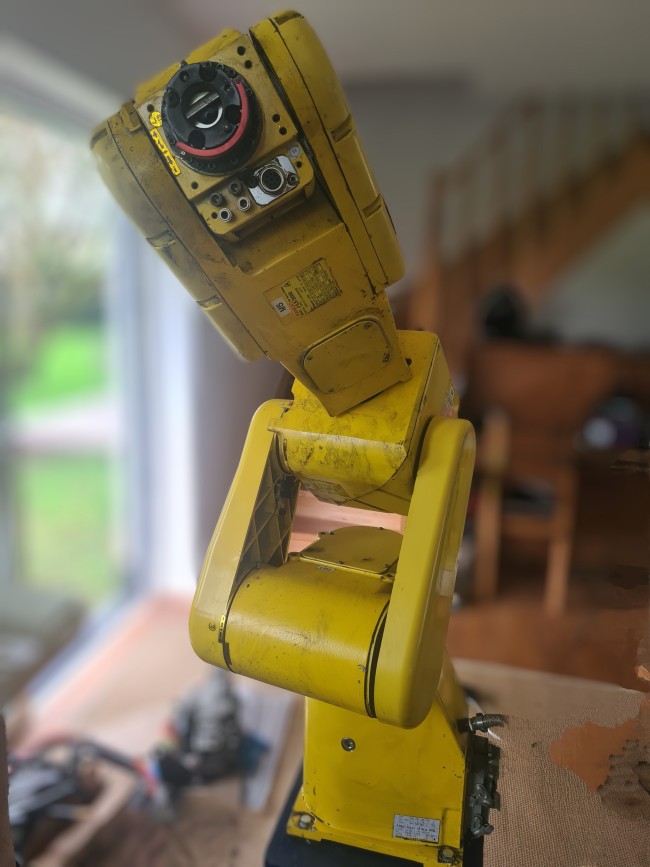

In french we call an item like this “dans son jus” to say that it comes “as is”

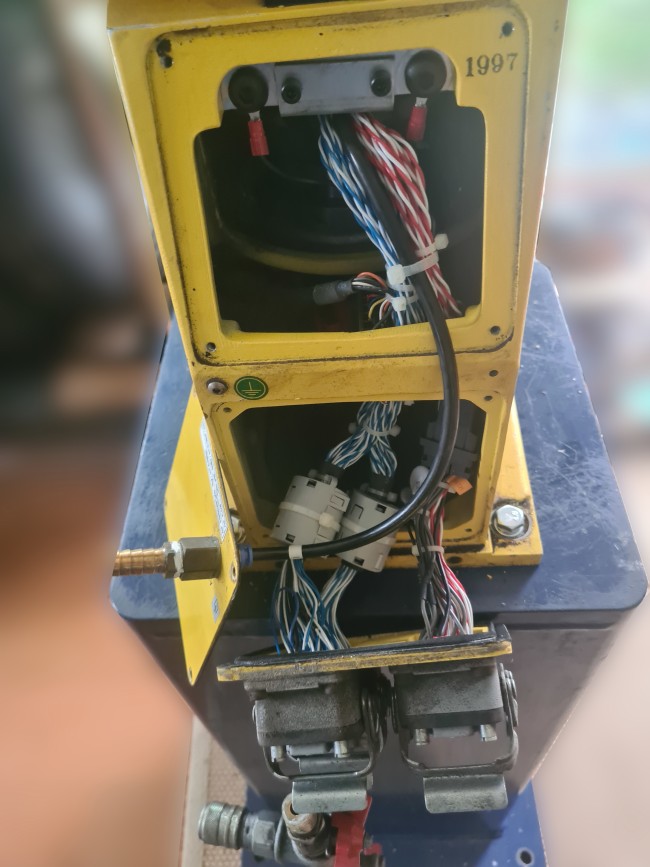

Opening the arm up and I find datecodes for 1997, a bit older than the listing that stated early 2000s

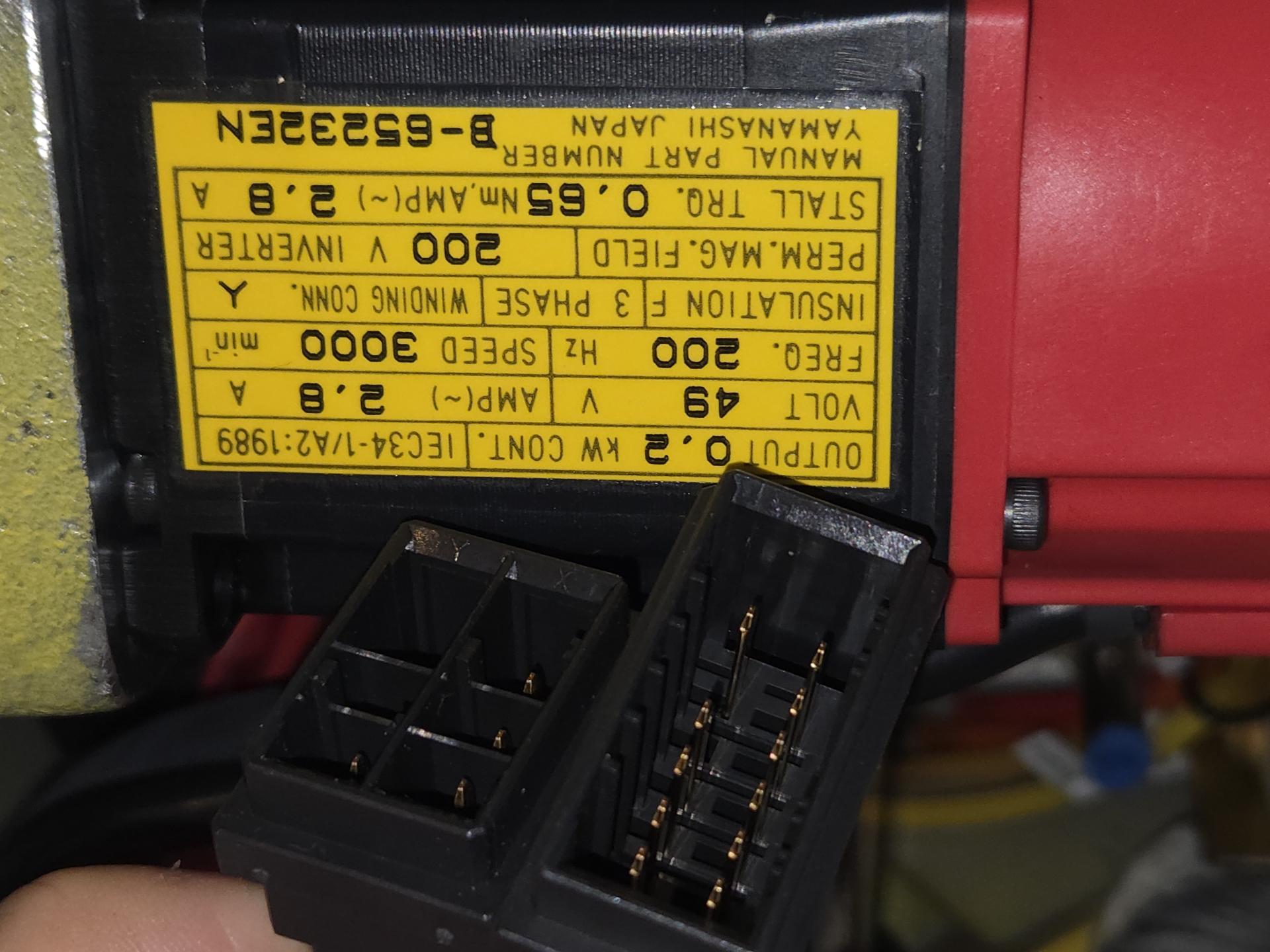

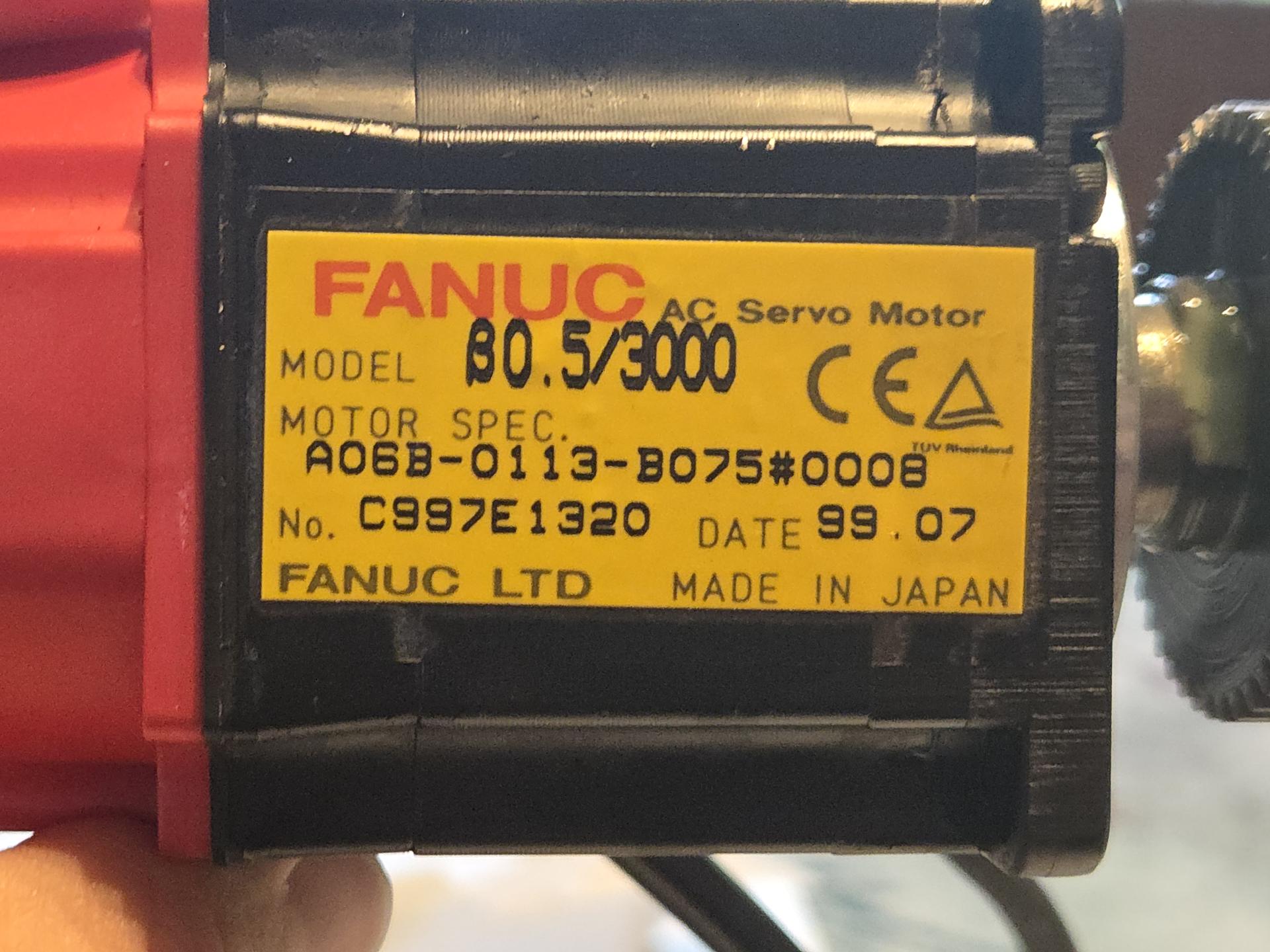

The Fanuc servos are AC, Model Beta 0.5/3000 and made in japan.

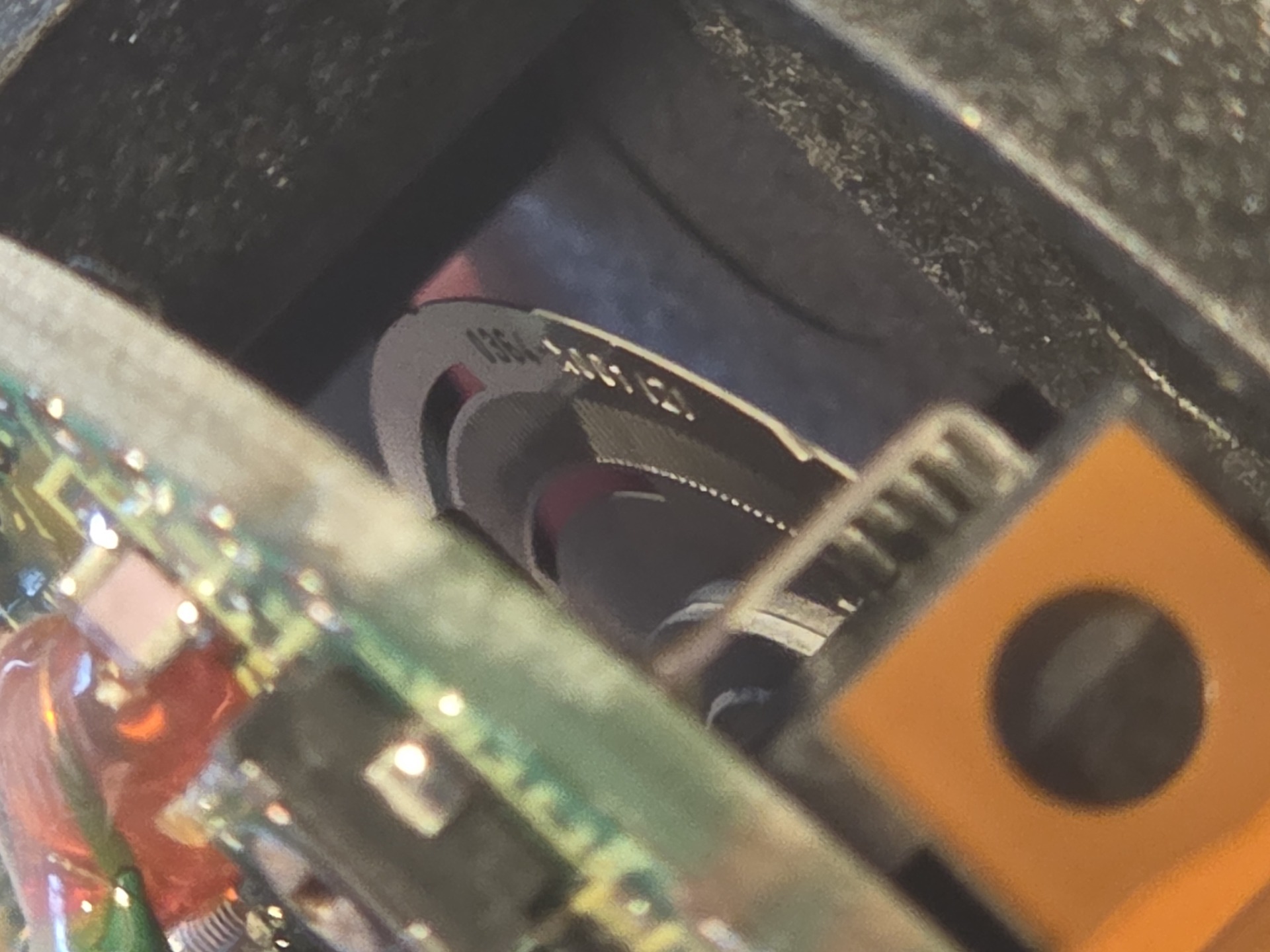

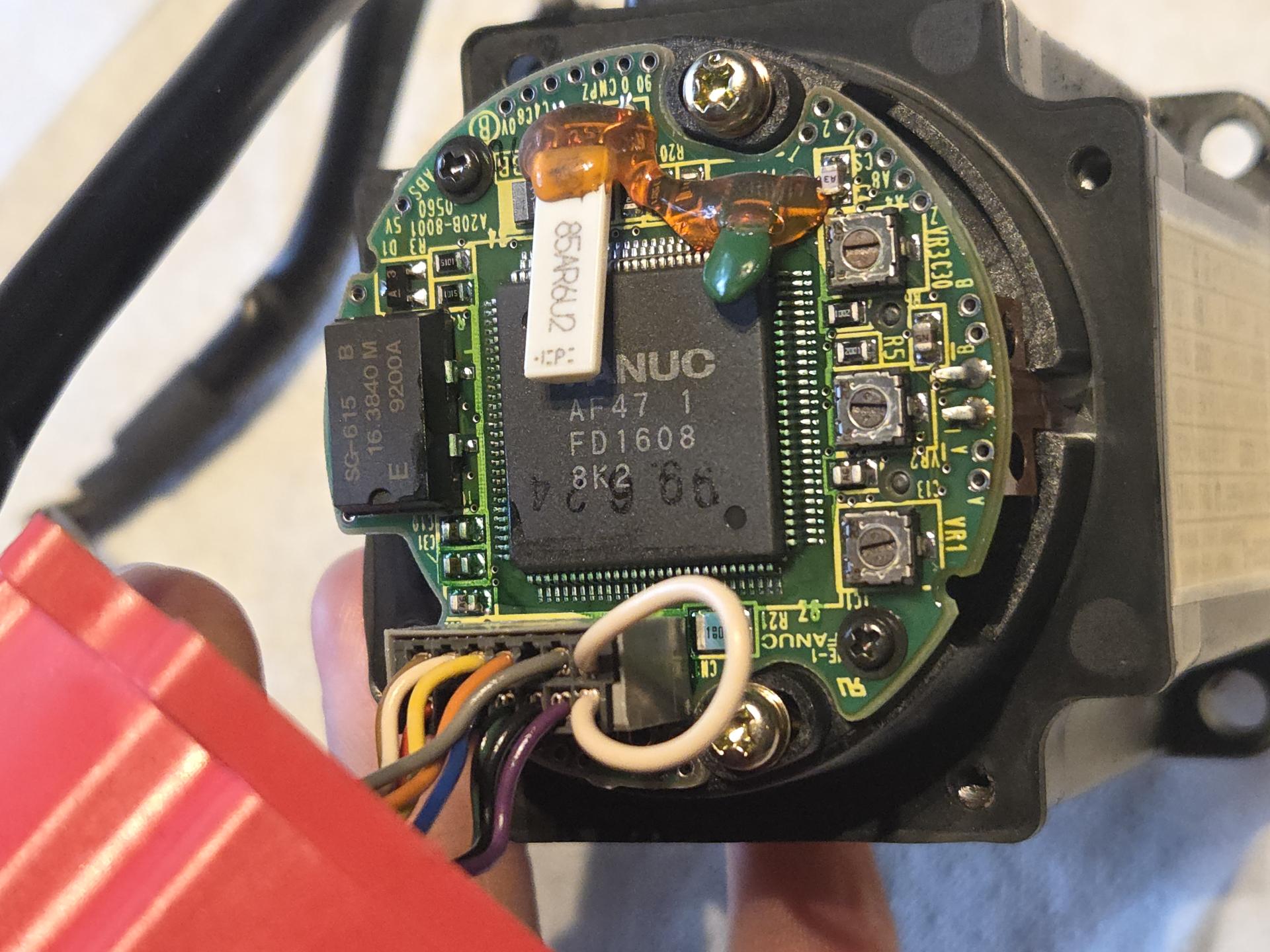

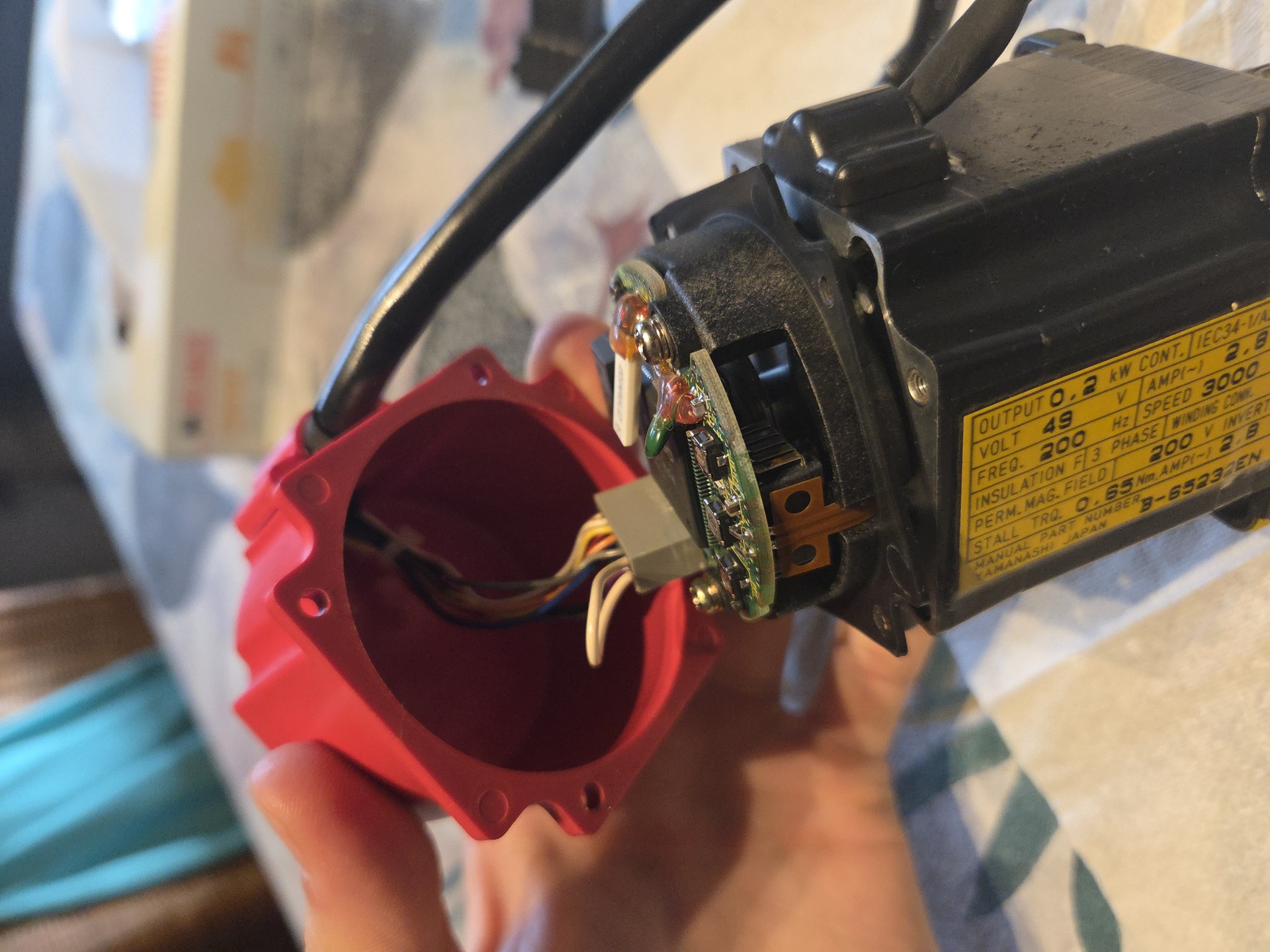

The encoder is, I believe, a FANUC PULSECODER, model number A20B-8001-0560

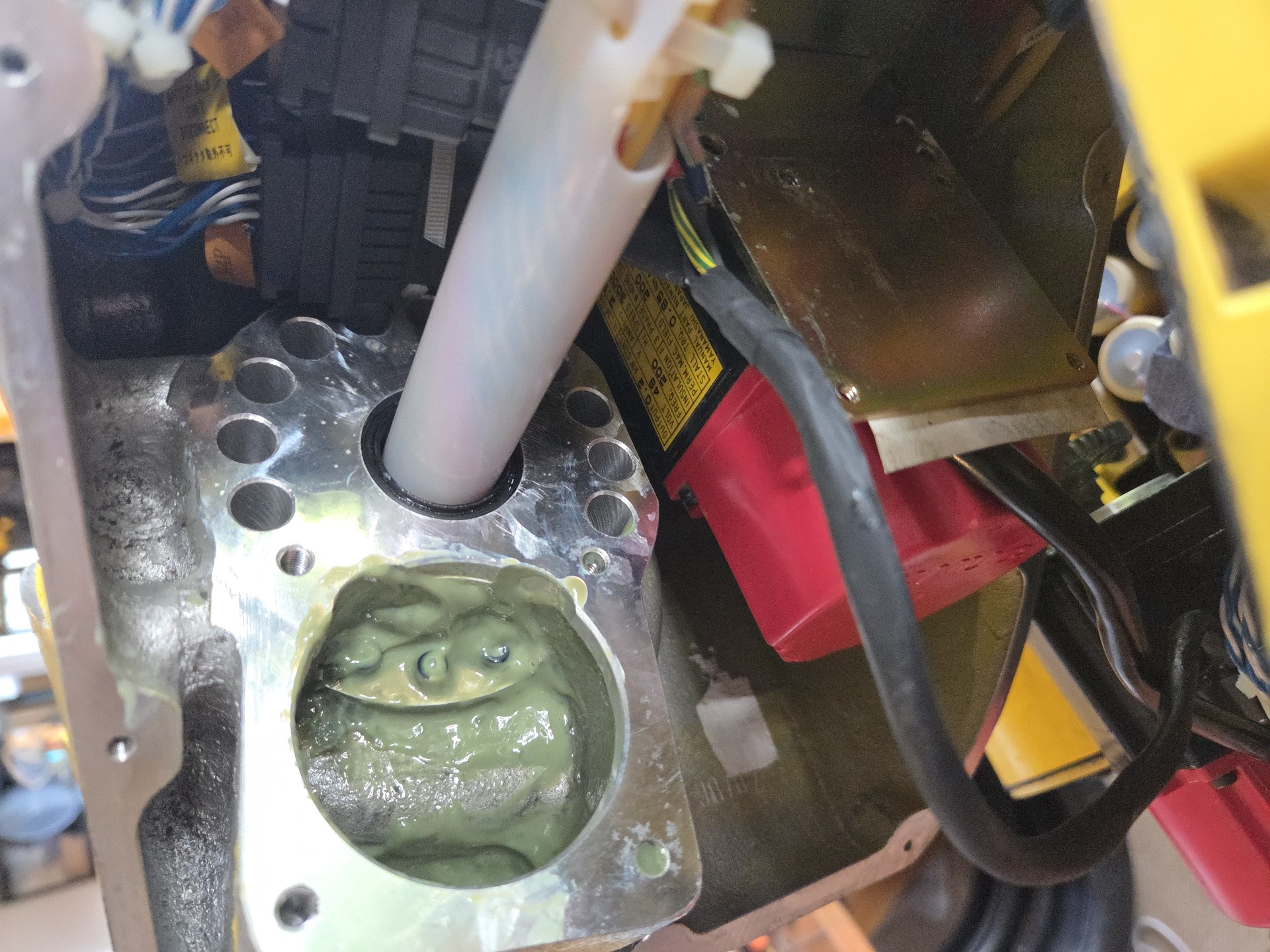

Extra photos, the grease was very old!

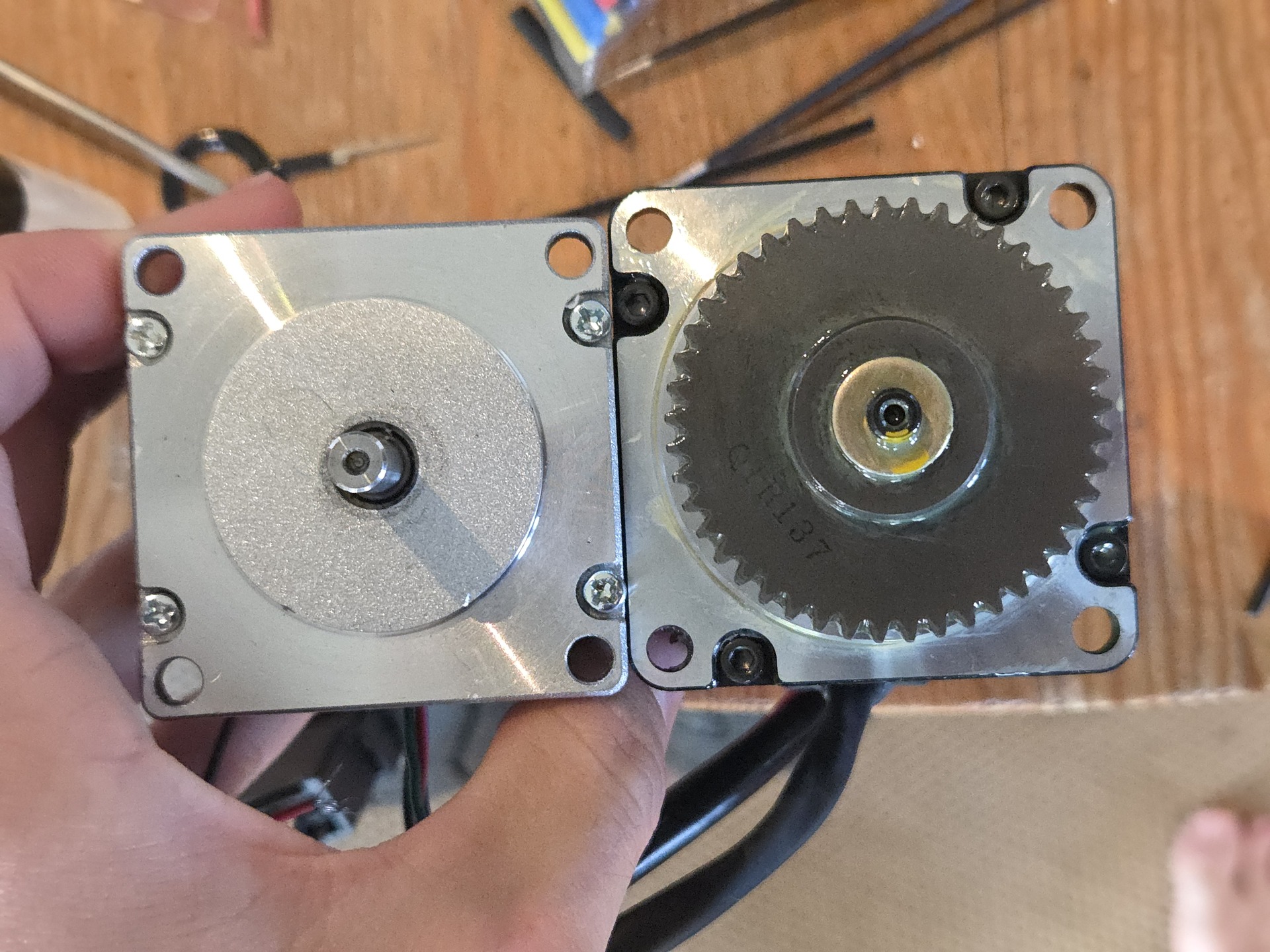

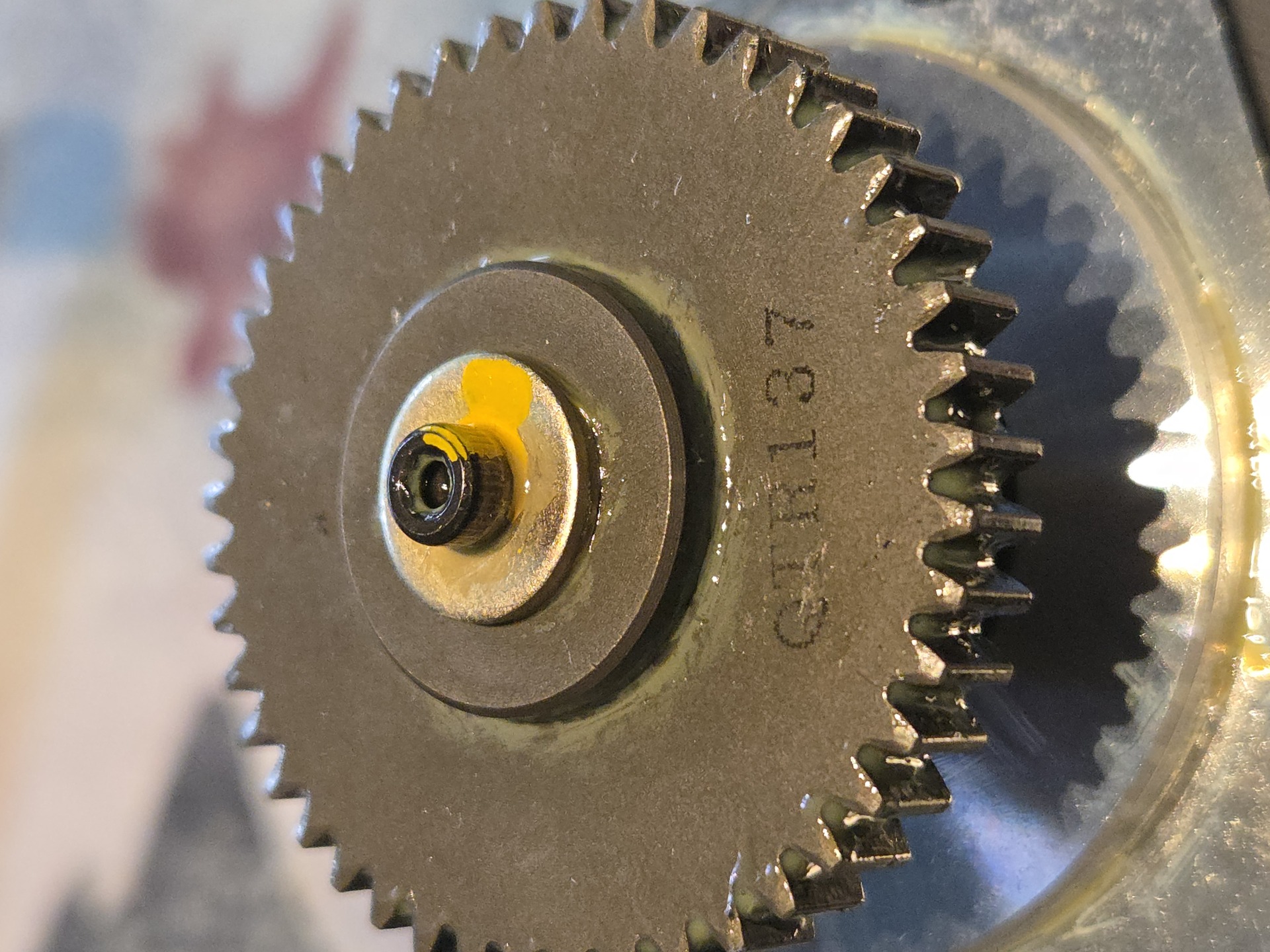

Its unfortunately not a standard NEMA size, but quite close! The threaded bolt in the gear prevents easy conversion though

If you have more deep knowledge or instructions on these I’m all ears
